Plans > Railing
| RAILING POSTS | |
| Cedar 4x4 S4S post for 36" rail; shown here attached to outside rim of deck but also commonly attached inside the framing area. The most strength is achieved by running the bottom of the post along as much framing as possible, which is typically 10". So most of the store-bought type won't work; we cut own from 4x4 stock. |  |
| Cedar 4x4 S4S post for 42" rail | |
| Westbury 2"x2"x37" aluminum posts w/skirts and caps |  |
| Westbury 2"x2"x47" aluminum posts w/skirts and caps | |
| Westbury 4"x4"x37" fluted posts w/skirts and caps |  |
| Westbury 4"x4"x47" fluted posts w/skirts and caps | |
| Vinyl sleeeves for 36" railing, mounted over 4x4 treated posts which are anchored to the framing. Shown here with vinyl square spindles; can also use round aluminum spindles with this product. |  |
| Post light for the Westbury system, 2x2 posts | |
| RAILING SECTIONS | |
| Basic cedar with no gap along bottom; 2x4' on edge under 2x6 which is routed and sanded smooth; spindles are 2x2 cedar, attached to the 2x4 at top and the rim of the deck at the bottom. All parts are cedar; all screws are triple-dipped galvanized deck screws. Top rail is glued over top of 2x4 and 4x4 posts to provide a strong interconnected system. One smooth top will be an easy item to maintain, and decorative tops can be added over it if desired. |  |

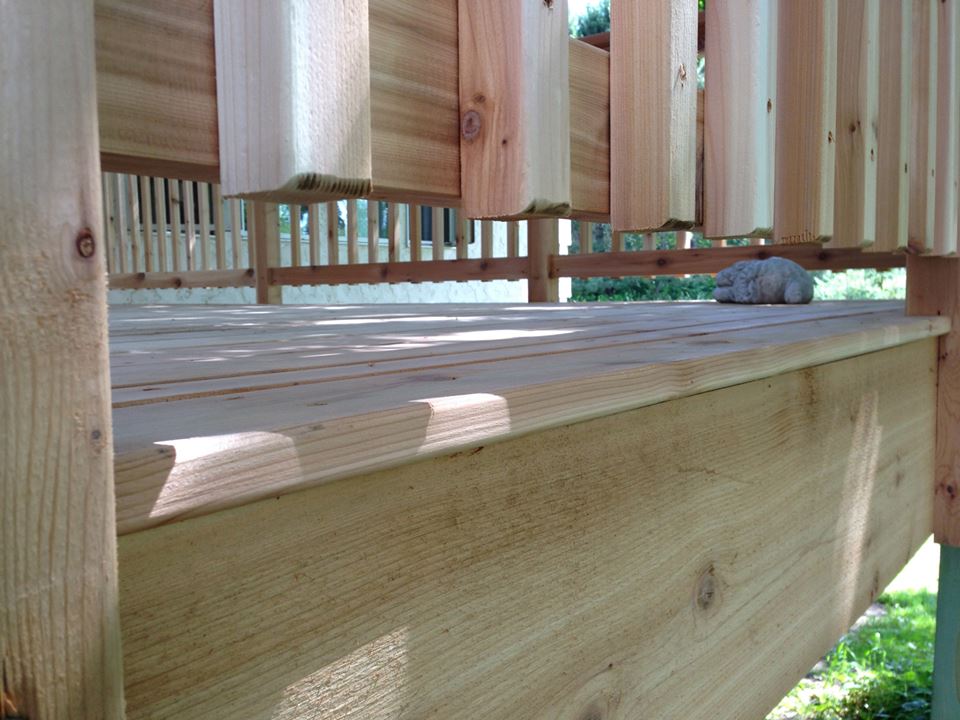

| Basic cedar with gap along bottom, approx. 4". 2x4 on edge at top, with 2x6 which is routed and sanded smooth; Top rail is glued over top of 2x4 and 4x4 posts to provide a strong interconnected system. One smooth top will be an easy item to maintain, and decorative tops can be added over it if desired. |  |
| Cedar railing 2x6 top rail, routed and sanded smooth; aluminum spindles between cedar 2x4's, 4" apart; works with a variety of spindle choices; rail height 42" |  |
| Menards Aluminum spindles every 4 inches; choose from 6 colors, turned or tubular. |  |
| Vinyl sections between posts (shown here with vinyl posts); four colors available, white, tan, clay, sandstone | |
| CableRail™ 1/8" cable is strung between posts (cedar posts shown here but other posts can be used); 3.5" apart; 200 lbs. tension so that separation can not be done easily by kids; provides maximum viewable area. Larger 1/4" thick cable is also available. |  |
| Westbury™ Tuscany Aluminum 5'x36" sections |  |
| Westbury™ Tuscany Aluminum 6'x36" sections; height=36”; baluster: 3/4” x 3/4”; spacing 3 7/8th"; top & bottom rail 1 3/4” Lifetime Limited Warranty (see link near bottom of document) ADA Compliant when using crossover posts that terminate below the top rail; power coating is an uncompromising quality created by state-of-the-art technology. This is the highest quality powder coating on the market with a lifetime limited warranty giving you peace of mind in your investment. We bolt these down with 4 4" or longer bolts. | |
| Westbury™ Tuscany Aluminum 7'x36" sections | |
| Westbury™ Tuscany Aluminum 8'x36" sections | |
| Westbury™ Tuscany Aluminum 5'x42" sections | |
| Westbury™ Tuscany Aluminum 6'x42" sections | |
| Westbury™ Tuscany Aluminum 7'x42" sections | |
| Westbury™ Tuscany Aluminum 8'x42" sections | |
| Westbury™ Riviera Aluminum 5'x36" sections |
|
| Westbury™ Riveria Aluminum 6'x36" sections | |
| Westbury™ Riviera Aluminum 7'x36" sections | |
| Westbury™ Riviera Aluminum 8'x36" sections | |
| Westbury™ Riviera Aluminum 5'x42" sections | |
| Westbury™ Riviera Aluminum 6'x42" sections | |
| Westbury™ Riviera Aluminum 7'x42" sections | |
| Westbury™ Riviera Aluminum 8'x42" sections | |
| Westbury™ Riviera II Aluminum 5'x36" sections |  |
| Westbury™ Riviera II Aluminum 6'x36" sections | |
| Westbury™ Riviera II Aluminum 7'x36" sections | |
| Westbury™ Riviera II Aluminum 8'x36" sections | |
| Westbury™ Riviera II Aluminum 5'x42" sections | |
| Westbury™ Riviera II Aluminum 6'x42" sections | |
| Westbury™ Riviera II Aluminum 7'x42" sections | |
| Westbury™ Riviera II Aluminum 8'x42" sections | |
| Westbury™ Riviera III Aluminum 5'x36" sections | |
| Westbury™ Riveria III Aluminum 6'x36" sections |
|
| Westbury™ Riviera III Aluminum 7'x36" sections | |
| Westbury™ Riviera III Aluminum 8'x36" sections | |
| Westbury™ Riviera III Aluminum 5'x42" sections | |
| Westbury™ Riviera III Aluminum 6'x42" sections | |
| Westbury™ Riviera III Aluminum 7'x42" sections | |
| Westbury™ Riviera III Aluminum 8'x42" sections | |
| Westbury™ Veranda Aluminum 5'x36" sections |  |
| Westbury™ Veranda Aluminum 6'x36" sections | |
| Westbury™ Veranda Aluminum 7'x36" sections | |
| copper griprail along side the stairs; continuous grip from top to bottom, with ends returned into the cedar or sleeved posts; browns out to a copper-penny like color; very strong; meets ADA code. |  |
| ADA handrail for aluminum systems; optional extended returns at top and bottom; very strong; meets ADA code. Matched to your Westbury railing color. |  |
| Returns on steps (45 degree corners) conceals the end grain of the stair treads and/or risers. |  |
| Arke Enduro 5' 3" Silver Outdoor Spiral Stair Kit |  |
| Cedar benches; built on 6x6 posts which are attached to framing; 1x6 trim around sides; picture-framed seating surface; routed and sanded smooth; approx. 2 feet wide by any length |  |
| Privacy Wall - Cedar |  |
| Privacy Wall - Vinyl |  |
